Sunstone

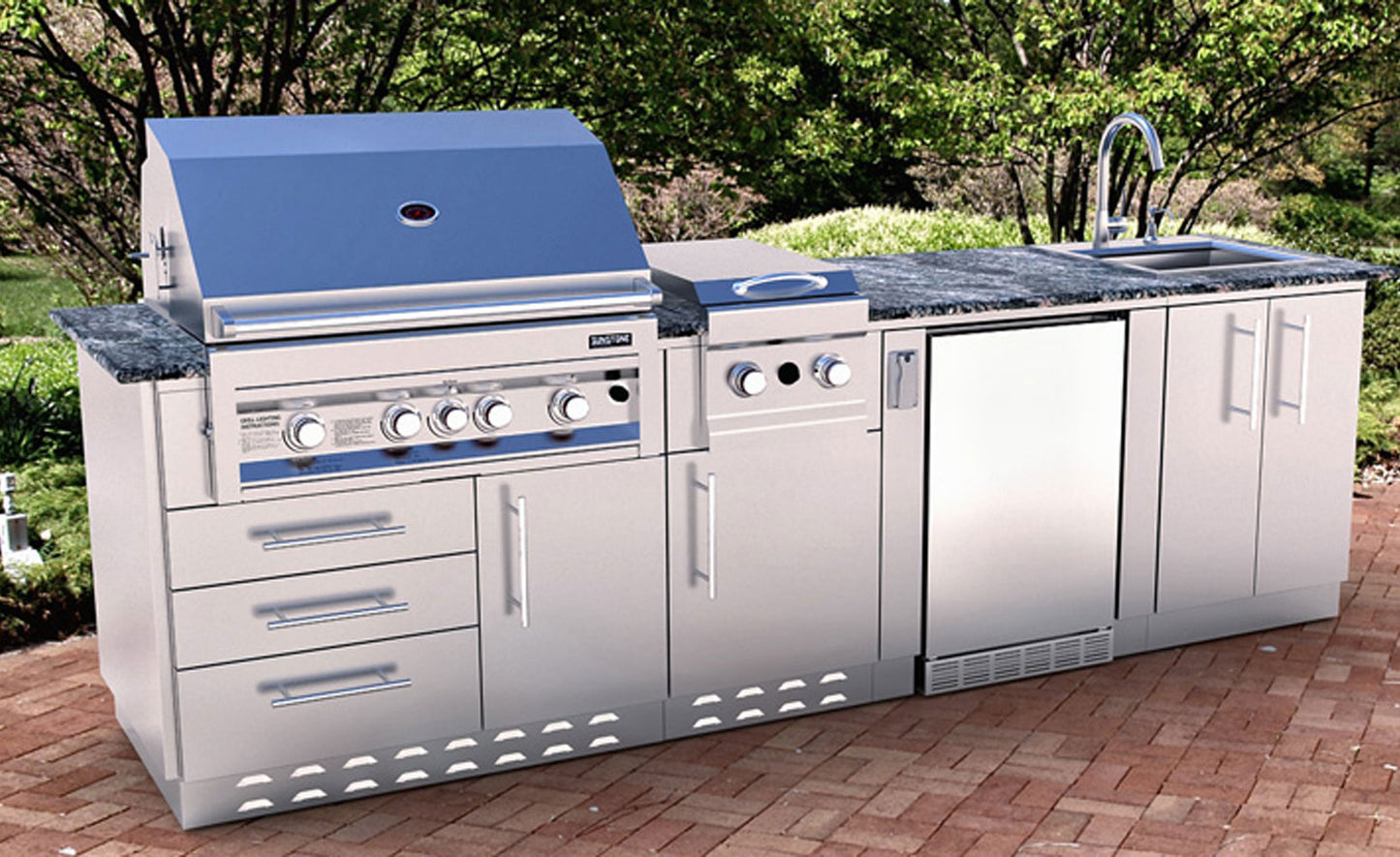

20" Sunstone Appliance Cabinet w/Right Swing Door

Regular price $1,259.00 USD
Regular price Sale price $1,259.00 USD

The 20" Sunstone Appliance Base Cabinet is entirely built with 304 Stainless Steel 16 & 18 Gauge Material Grades, and is uniquely designed to receive multiple Types of either Gas Double Side Burners or for use with many Slide-In Cocktail Bar Stations right out of the box and with easy installation with simple Pin-Lock installation - No Tools Required. The cabinet comes standard with a Single Right Door Enclosure with interior bottom Tray-Drawer for use with a Propane Tank or Trash Bin. Included is the Removable Top Counter Rail, allowing you to make your counter as either Standard Bevel Edge or when removed make counter a Full Bull-nose edge. The cabinet is Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles, and mount the Front and Back Kick-Plates. For easy utility installation, there are multiple sides and one large single bottom access port, covered by black Snap-in plastic covers which allow the unit to stay as tightly sealed as possible without compromising the integrity of the cabinet.

  • Lifetime Structure Warranty   • 304 Stainless Steel Structure
  • 304 SS Rod Handles   • Front Vented Kick-Plate
  • Rear Solid Kick-Plate   • Replaceable Face Panel
  • Easy Pin-Lock Installation   • Removable Counter Rail
  • Covered Side Wall Access Ports   • 4 Adjustable Peg-Legs
  • Optional Wheel Casters
  Separately purchase the Side Cabinet End Panel & End Kick-Plate



SAC20CSDR TRIM-KIT
Item Number Sleeve Cut-Out Product Option
SCC20CTK2.5 14-1/2" Width x 10-1/4" Height x
24-1/2" Maximum Depth

SCC20CTK3.25 13-1/2" Width x 10-1/4" Height x 24-1/2" Maximum Depth Sunstone® Cocktail Station, Sunstone®
Cocktail Pro, Alfresco® Double Burner
SCC20CTK3.75

12-3/8" Width x 8" Height w/Rail or
10-1/4" Height wo/Rail x 24-1/2" Maximum Depth

Sunstone® Double Burner, Double Burners for - RCS®, Lynx®,DCS®, Alfresco®, Luxor®, Cal-Flame® Double Burner, Cal-Flame® Cocktail Center, Coyote® Double Burner
SCC20CTK4.5 11" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24-1/2" Maximum Depth Steele® Side Burner
SCC20CTK5 9-3/4" Width x 8" Height w/Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth
20" Appliance Cabinet w/Right Swing door Insertable Products
20"W x 28-1/4"D x 34-1/2"H (w/Legs) Double Side Burner -2CSB
20"W x 28-1/4"Dx 30-1/2" (without Legs) Cocktail Pro- B-CS14
Upto 36" Max Adjustable Height
Net Weight 71.5 LBS
23"W x 31" L x 33" H(Package Size)/81
Download Cabinet Island Setup Manual
Download Spec.Sheet for SAC20CSDR
Material Specifications:
304 Stainless Steel entire structure, 18 Gauge for Door Panel , 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar
Disclaimer: The trademarks used in the “Product Option” column below belong to their respective owners. Use own discretion to confirm exact product fit.
