Sunstone

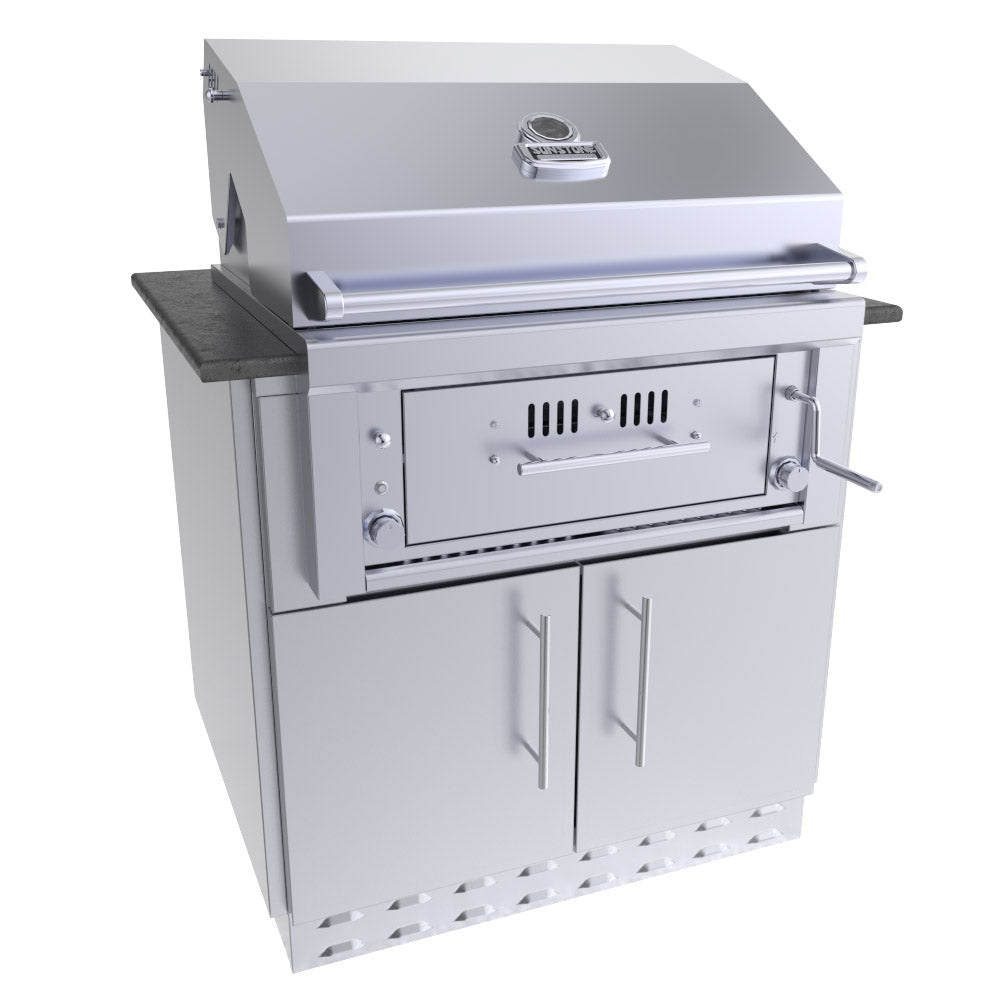

34" Sunstone Hybrid Grill & Bar Center Cabinet

Regular price $2,189.00 USD
Regular price Sale price $2,189.00 USD

The 34 In. Sunstone Gas Hybrid Charcoal Grill and Bar Centers Base Cabinet is uniquely designed to receive multiple Types of either Gas Grill ,Charcoal Grill or Bar Center Brand Models right out of the box easy installation. The appliance cabinet has double access doors with plenty of storage and makes use of multiple utility access ports at the base for drainage and side ports for water/gas/electrical lines. The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred grill, and is compatible with Grills “CUT-OUT” Sizes between 23-7/8 In.  to 28-1/2 In. Width by 10-3/8 In. to 12-3/4 In. Max Height with counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your grill, if your grill is any of our Models we will automatically include the correct Trim-Kit.  Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your grills “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order

  • Works w/SUNCHSZ30 • 304 SS Structure
  • Lifetime Structure Warranty • Replaceable Face Panel
  • 304 SS Rod Handles • Front Vented Kick-Plate
  • Rear Solid Kick-Plate • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation • Removable Counter Rail
  • Covered Side Wall Access Ports • 4 Adjustable Peg-Legs
  • Optional Wheel Casters
  Separately purchase the Side Cabinet End Panel & End Kick-Plate



SAC34CGDC TRIM-KIT
Item Number Sleeve Cut-Out Product Option
SCC34CTK2.5 28-1/2" W x 12-3/4" H x 24-1/2" Maximum Depth Pcm® 30" Charcoal, Twin Eagles® 30" Charcoal, Vintage® 30" Charcoal, Alfresco® 30" Varsa Apron Sink, Solaire® 30" Bar Station, Bull® 30" Bar Center, Beefeater® 30" Bar Center, Lynx® 30" Bar Center
SC34CTK3.25 27-1/2" W x 13-3/4" H x 24-1/2" Maximum Depth
SCC34CTK3.75 26-3/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x24-1/2" Maximum Depth Sunstone® 30" Hybrid Grill - SUNCHSZ30, PGS® 27" Beverage Center
SCC34CTK4.5 25" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth Sunstone® 28" Charcoal - SUNCHDZ28, Fire Magic® Aurora® Grill
SCC34CTK5 23-7/8" W x 10-3/8" H w/Support Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth PGS® 24" Beverage Center, Solaire® 24" Bar-tending Station
34” Sunstone Charcoal Grill Base Cabinet Insertable Products
34"W x 28-1/4"D x 34-1/2"H (w/Legs) 28" CHARCOAL-SUNCHSZ28
34"W x 28-1/4"D x 30-1/2"H (without Legs) 30" CHARCOAL-SUNCHSZ30
Upto 36" Max Adjustable Height
Net Weight 136.4 LBS
37"W x 31" L x 33" H (Package Size)/147LBS
Download Cabinet Island Setup Manual
Download Spec.Sheet for SAC34CGDC
Material Specifications:
304 Stainless Steel entire structure, 18 Gauge for Door Panel , 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar
Disclaimer: The trademarks used in the “Product Option” column below belong to their respective owners. Use own discretion to confirm exact product fit.
