Sunstone

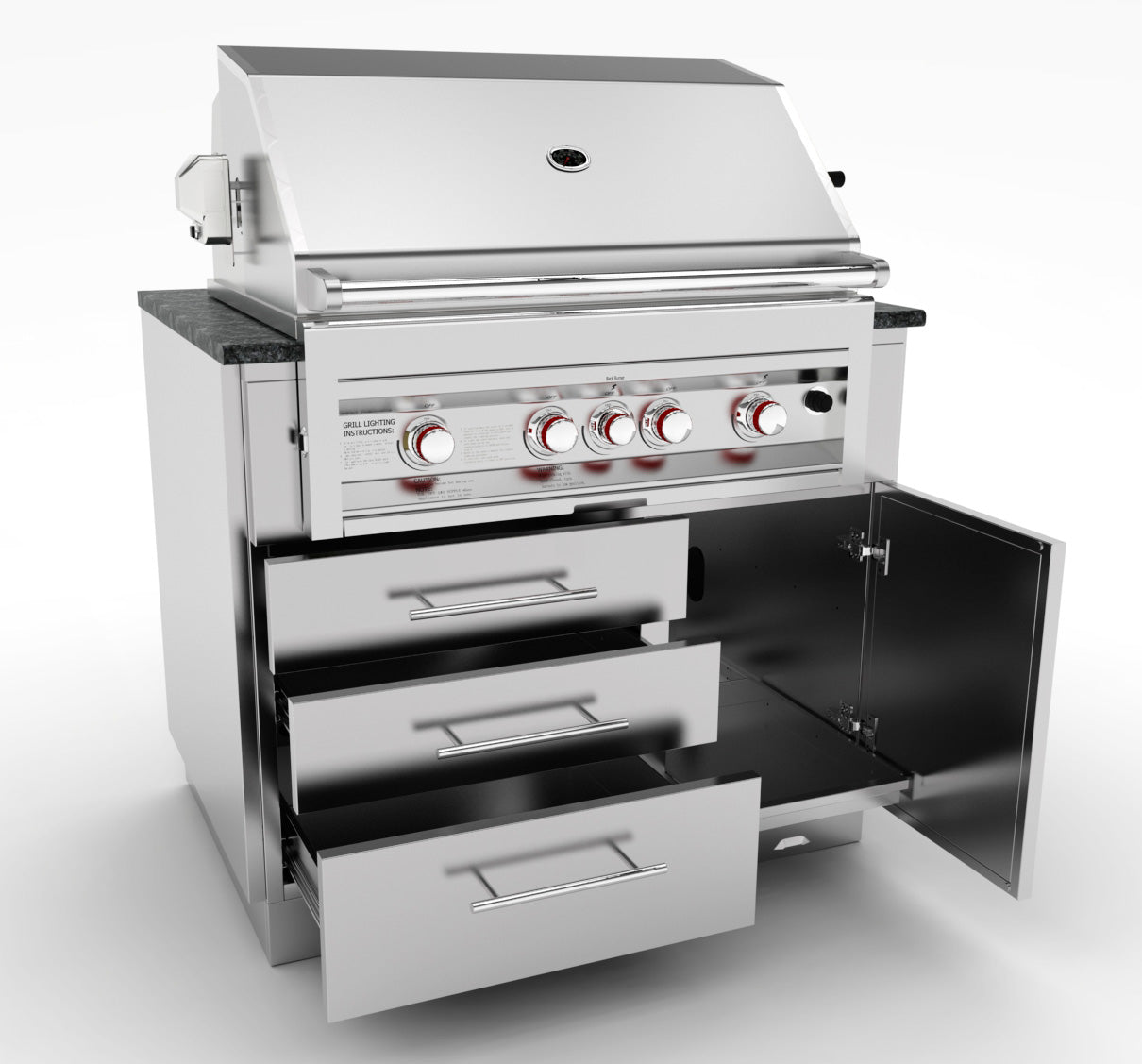

40" Sunstone Gas Grill Base Cabinet

Regular price $2,559.00 USD
Regular price Sale price $2,559.00 USD

The 40 In. Sunstone Gas Grill Base Cabinet is uniquely designed to receive multiple Gas Grill Brand Models right out of the box for easy installation. The cabinet comes standard with a Right Side Door Enclosure for a Propane Tank or Trash Bin while the Left side has Three Large Drawers with Ample Storage Space for all your BBQ Utensils, Rubs and Sauces. The cabinet comes Fully Assembled, only requiring you to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. This Cabinet uses of a “TRIM-KIT” that is installed on the front face of the cabinet, allowing you to adapt the cabinet to fit your preferred grill, and is compatible with Grill “CUT-OUT” Sizes between 29-3/4 In. to 34-1/2 In. Width by 8 In. to 10-1/4 Max Height with counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with the cabinet to fit your grill, if your grill is one of our Models we will automatically include the correct Trim-Kit. Please see the Cabinets Specification Sheet for more information, the second page refers to your grill’s “Cut-Out” Dimensions – match this up to the correct “Trim-Kit” and specify this piece on your order.

  • Lifetime Structure Warranty   • 304 Stainless Steel Structure
  • 304 SS Rod Handles   • Front Vented Kick-Plate
  • Rear Solid Kick-Plate   • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation   • Removable Counter Rail
  • Covered Side Wall Access Ports   • 4 Adjustable Peg-Legs
  • Optional Wheel Casters   • Replaceable Face Panel
  Separately purchase the Side Cabinet End Panel & End Kick-Plate



SAC40GLPCD TRIM-KIT
Item Number Sleeve Cut-Out Product Option
SCC40GTK2.5 34-1/2" W x 10-1/4" H x 24-1/2" Maximum Depth ,DCS® 36" Grill, Alfresco® 36" Grill
SCC40GTK3.25 33-1/2"W x 10-1/4" H x 24-1/2" Maximum Depth 36" Ruby® Grill
SCC40GTK3.75 32-1/4" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth Blaze® Pro 34" Grill
SCC40GTK4.5 30-7/8" W x 8" H w/Support Rail or 10-1/4" Height wo/Rail x 24- 1/2" Maximum Depth Sunstone® 4B 34" Grill, Steele® 32", AOG® 30" Bull® 30", Lion® 32", Blaze® 32", Coyote® 34"
SCC40GTK5 29-3/4" W x 8" H w/Rail
or 10-1/4" Height wo/Support Rail x 24-1/2" Maximum Depth

40” Sunstone Gas Grill Base Cabinet Insertable Products
40"W x 28-1/4"D x 34-1/2"H (w/Legs) SUN4B/ SUN4BIR /RUBY4B
40"W x 28-1/4"D x 30-1/2"H (without Legs)
Upto 36" Max Adjustable Height
Net Weight 156.6 LBS
43"W x 31" L x 33" H (Package Size)/171LBS
Download Spec.Sheet for SAC40GLPCD
Download Cabinet Island Setup Manual
Material Specifications:
304 Stainless Steel entire structure, 18 Gauge for Door Panel , 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar
Disclaimer: The trademarks used in the “Product Option” column below belong to their respective owners. Use own discretion to confirm exact product fit.
