Sunstone

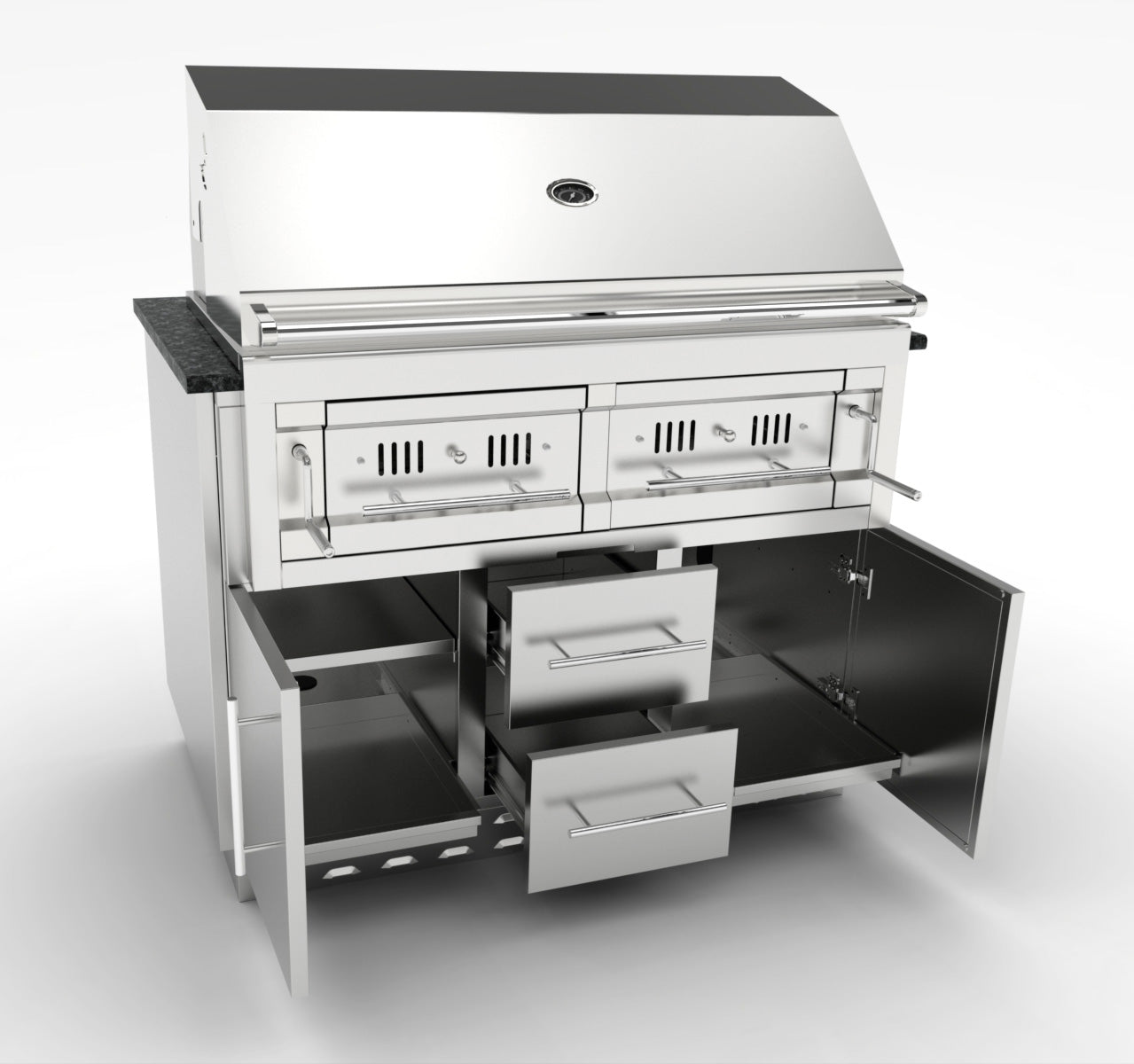

46" Sunstone Hybrid Charcoal Grill Base Cabinet

Regular price $2,829.00 USD
Regular price Sale price $2,829.00 USD

The 46 In. Sunstone Gas Hybrid Charcoal Grill Base Cabinet is uniquely designed to receive multiple Types of either Gas Grill or Charcoal Grill Brand Models right out of the box easy installation. The cabinet comes standard with a Right & Left Side Door Enclosure for a Trash Bin or Storage, is not compatible with Larger Propane Tanks. In addition there are Two Center Large Drawers with Ample Storage Space for all your BBQ Utensils, Rubs and Sauces. The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred grill, and is compatible with Grills “CUT-OUT” Sizes between 35-3/4 In.  to 41 In. Width by 10-3/8 In. to 12-3/4 In. Max Height with counter at 3/4 In. Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your grill, if your grill is any of our Models we will automatically include the correct Trim-Kit.  Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your grills “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order

  • Lifetime Structure Warranty   • 304 Stainless Steel Structure
  • 304 SS Rod Handles   • Front Vented Kick-Plate
  • Rear Solid Kick-Plate   • Soft-Close Drawer Tracks
  • Easy Pin-Lock Installation   • Removable Counter Rail
  • Covered Sidewall Access Ports   • 4 Adjustable Peg-Legs
  • Optional Wheel Casters   • Replaceable Face Panel
  Separately purchase the Side Cabinet End Panel & End Kick-Plate



SAC46CGDC TRIM-KIT
Item Number Sleeve Cut-Out Product Option
SCC46CTK2.5 40-1/2" W x 12-3/4" H x 24-1/2" Maximum Depth Twin Eagles® 42" Grill,Wolf® 42”
SCC46CTK3.25 39-1/2" W x 13-3/4" H x 24-1/2" Maximum Depth Sunstone® 42" Charcoal Grill
SCC46CTK3.75 38-1/4" W x 10-3/8" H w/Rail or 12-3/4" Height wo/Support Rail x24-1/2" Maximum Depth
SCC46CTK4.5 36-7/8" W x 10-3/8" H w/Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth
SCC46CTK5 35-3/4" W x 10-3/8" H w/Rail or 12-3/4" Height wo/Support Rail x 24-1/2" Maximum Depth Twin Eagles® 36" Grill, Wolf® 36”
46" Sunstone Charcoal Grill Base Cabinet Insertable Products
46"W x 28-1/4"D x 34-1/2"H (w/Legs) 42" Charcoal-EMCHDZ42
46-"W x 28-1/4"D x 30-1/2"H (without Legs)
Upto 36" Max Adjustable Height
Net Weight 198 LBS
49"W x 31" L x 33" H(Package Size)/215LBS
Download Spec.Sheet for SAC46CGDC
Download Cabinet Island Setup Manual
Material Specifications:
304 Stainless Steel entire structure, 18 Gauge for Door Panel , 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar
Disclaimer: The trademarks used in the “Product Option” column below belong to their respective owners. Use own discretion to confirm exact product fit.
